Nature of Feather ConstructionJuly 14, 2017 - 31 minutes read
by Wayne Luallen
Photography by Verne Lehmberg
An important aspect of fly tying is sharing information. In turn it behooves us as fly tiers to speak the same language. We have all read fly patterns that refer to quills, barbs, barbules, fibers, shafts, stems, vanes, and so forth, but when we read these terms do we know what they have reference to? We may, but what about the author; did he truly describe by name what he intended? How often have we read quill when in fact what was referred to was actually a barb or perhaps shaft? How often have we read fibers when the author meant barbs or per-haps barbules? How often have we read barbs, barbules, fibers, or even barbels (which are tactile processes on the lips of a fish rather than components of a feather) when referring to a feather’s ability to mar-ry, when in actuality barbicels or perhaps more specifically hooklets and/or spines would have been accurate as well as descriptive names? If we spoke the same language we would better comprehend what was intended. It may not be necessary to know scientific names, but if we wish to communicate, we need to have standards.
The parts of a typical feather are simple to learn, and once understood help us to bet-ter appreciate why feathers do what they do in different applications. For instance why does a dry fly hackle when wound on an uneven surface (i.e., twisted thread, bulky surface, etc.) lead to a fly with the barbs strewn all about? Why does the same feather mounted on an even surface pro-duce a fly with barbs at a distinct ninety degree angle out from that surface? If you understand the shape of the rachis and the location of the barbs on the rachis it all makes sense. What does understanding of feather construction lead to? Better flies that we control rather than the material controlling us. It also leads to a more appropriate selection of materials for specific tasks.
This article is not intended to be a complete scientific discourse on the nature of feathers. Feathers are as unique as the birds that wear them. The following discussion is general in its scope while being specific enough to cover the majority of feather types that the fly tier will encounter. All the same great effort has been placed on accuracy of feather and component names and descriptions. Perhaps just as important has been a desire to whet the appetite of the fly tier toward better understanding of not only physical construction, types, and purposes of feathers, but also to make that same tier more curious about the nature of other materials. Observation leads to understanding. Understanding leads to better results in any endeavor. Sadly it is easier to take for granted what has been said in the past rather than investigating on our own.
It may prove beneficial to have a selection of feathers on hand while reviewing this article such as an eyed peacock upper tail covert, a turkey tail feather, a turkey marabou semi-plume, a ring-necked pheasant contour feather, and a rooster neck hackle.
Feather Anatomy 101

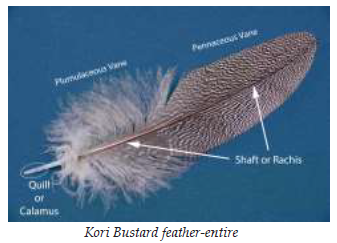

The quill or calamus is often mistakenly described as being anything from the feather shaft to the barbs themselves. The fact is that the quill is simply that portion of the feather that is inserted in the skin follicle; nothing more. It is cylindrical, transparent, and hollow. There are no barbs attached to the quill.

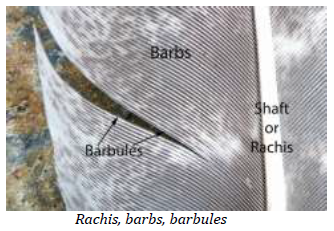

The shaft or rachis is that portion of the feather that the barbs are attached to. It is flattened on the sides that support the barbs, and differs from the quill by being roughly rectangular in cross section. Internally it is not hollow, but rather is filled with a pithy material that contains air cells.
The barbs or rami (singular: ramus) come off the flattened sides of the shaft more toward the anterior (face) surface of the feather and in parallel rows generally op-posing one another. They point outward and toward the tip of the feather. They are somewhat ovoid in cross-section (thinner side to side, wider front to back,) broader near their attachment to the rachis, flattening and narrowing as they approach the tip. Barbs, like the shaft, are filled with a pithy material containing air cells. A feather may have only a couple of dozen barbsor several hundred.
Barbules or radii (singular: radius) extend out from either side of the barbs. From the base to about half way to their tip, they are ribbon-like (the basal lamella). The distal half is more whip-like (the pennulum.) The barbules on the distal (upper) edge of a barb extend outward almost perpendicular to the barb. The barbules on the proximal (lower) edge of a barb lay more parallel with the barb. This is readily visible with a peacock upper tail covert feather’s barbs, commonly referred to as herl. (Herl according to dictionary definition is a barb or barbs of a feather, originating from the Middle English harle or herle which referred to fiber, hair of flax, or hemp.) Barbules extend out from a barb more proxi-mal to the anterior (face) surface similar to barbs on a shaft. Again note the appear-ance of the peacock upper tail covert feather. When viewed from the anterior surface of the feather, the brightly colored eye is more dominate because the barbules (which often provide the majority of a feather’s color) are attached closer to the anterior edge of the barb. When viewed from the opposing surface, the flat, rather dull color is due to the dominance of the color of the edges of the barbs as well as the location and physical shape, and in turn, light reflectance of the barbules.

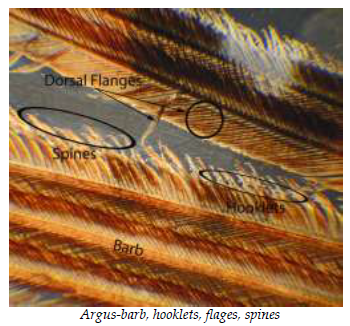

Barbules may or may not have attached to them structures collectively referred to as barbicels. Barbicels allow adjacent barbules to interlock or marry. They differ on the barbule in shape and function by location. Distal barbules (those extending off the barb toward the feather tip) with barbicels have projecting structures at the base of the whip-like pennulum (distal half of the barbule) on the ventral (under) surface that are long and hooked, hooklets (hamuli,) with the remainder of the pennulum having shorter spines (ventral processes.) Proximal barbules (those extending off the barb toward the feather’s quill) tend to be more twisted than the distal barbules, and have a trough-shaped dorsal flange (groove) on the anterior (front) edge. As the hooklets of a distal barbule overlap the adjacent proximal barbule, the hooklets attach to the grooved edge while the spines stop the hooklets from sliding too far. The diagonal cross-over of barbules creates a visible herringbone pattern. Both distal and proximal barbules have other lesser processes on the underside of the ribbon-like lamella referred to as ventral teeth and on the upper side of the whip-like pennulum referred to as dorsal cilium and spines. The hooklets and spines create the marriage of the adjacent barbs while the dorsal processes and ventral teeth catch the barbs and barbules of overlaying feathers to help maintain a solid, air-tight surface in flight. In turn the feather vane is maintained asnot only air tight, but with some birds, a water tight structure. Barbicels refers to all the processes that interlock to create the vane.
The shaft gives support while the vane (vexillum) or the web of a feather (which includes all the flat, expanded barbs, as well as any attached barbules, and barbicels) provides the surface for an airfoil in flight feathers and for covering and insulation in contour feathers. At the typical feather’s base, the vane is downy and pro-vides some insulation. This part of the vane is referred to as the plumulaceous vane. The remaining portion of the vane is more firm and compactly arranged, and is referred to as the pennaceous vane. Feather types are often defined by the proportion of plumulaceous and pennaceous material present. Some feathers are strictly plumulaceous, others are strictly pennaceous, and others are both plumulaceous and pennaceous.
Birds have a tremendous variety of combinations of feather components. For instance the Crowned Crane crest feathers are each made up of a short quill, a twisted rachis, and few barbs. What the fly tier considers the useable portion of a typical cocks hackle in a dry fly has few or no barbules on the barbs since those barbs with barbules are stripped prior to application. (Fly tiers somewhat incorrectly refer to this part of the feather as being the web or web-by portion of the feather. Web is a term synonymous with the whole vane.) Some feathers have barbules without barbicels. Examples would include peacock upper tail covert feather barbs below the eye as well as down feathers from any bird. (When considering peacock herl, the barbs are often mistakenly referred to as quills.
Also the barbules on the barb are confusingly referred to as herl. For example the Quill Gordon fly pattern calls for a body made from a “quill” that before wrapping onto the hook requires removal of the “herl”. The “quill” called for in actuality is a barb and the “herl” referred to are barbules on the herl or barb.) Barbicels are found on flight feathers (i.e., turkey tail feathers, peacock secondary wing feathers, etc.) with the exception of flightless birds (i.e., emu, ostrich, kiwi, etc.) Just as a barb does not necessarily have barbules, barbules do not necessarily have barbicels. Turkey marabou (semi-plume) is an exam-ple of a feather with barbules, but no barbicels. Body (contour) feathers of most pheasants are examples of feathers having barbules without barbicels (plumulacious vane) on some barbs and barbules with barbicels (pennaceous vane) on others.
The arrangement of barbs, barbules, and barbicels is important to understand when marrying feather strips for a wing on a wet fly or Atlantic Salmon fly. The marriage of a strip of upper barbs to a correctly matching strip of lower barbs is quite easy if the face side of the upper strip is placed slightly behind the face side of the lower strip. This allows the hooklets on the barbules of the top barb of the lower strip to have opportunity to grasp the grooved edge (dorsal flange) of the barbules on the upper strips’ bottom barb. If the strips are overlapped immediately above and below one another, or perhaps the upper strip is in front of the lower strip, due to their arrangement on the barbules, a complete interlocking of hooklets to flanges will not occur. If a strip is overlaid with another strip, but the matching strip is upside down, this arrangement of barbicels will not allow the strips to marry. If a right strip is overlaid with a left strip, even though the proximal to distal arrangement of the barbules is correct, no reliable marriage will occur, because the hooklets and flanges do not align.
Many feathers develop fault bars across the vane. As feathers grow, a disruption in cell development may occur leaving distinct lines across the vane generally perpendicular to the shaft. These are due to stress, other abnormal conditions, or may be pre-sent under normal conditions. A fault bar’s appearance is due to underdevelopment of barbules or total lack of barbules in the area of the disruption.
Each feather grows out of the dermal tissue from a follicle in similar fashion to hair in mammals. Some feathers can be moved by muscles attached to the follicles. For exam-ple, tail and wing feathers can be adjusted to aid in flight. Body feathers can be erected independently or in groups for the purpose of body temperature adjustment as well as for display. Most feather follicles are well supplied with nerves, so it appears that feathers may serve as organs of touch. During development the feather is a living structure well supplied with blood, but once matured the feather itself is a dead structure. After a period of use it is shed or molted, and then replaced by a new feather from the same follicle.
There are two basic types of feathers from which others are derived; down feathers and vaned feathers. Down feathers are essentially random fluff having no barbicels on the barbules to interlock their barbs. In nestling birds down feathers consist of a tuft of barbs without a rachis. Juvenile and adult birds have down feathers that include a rachis. Vaned feathers include all feathers with a flat expanse of barbs extending parallel out from the shaft. Contour and flight feathers are pennaceous vaned feathers and are accepted as vaned feathers, where that plumulaceous feathers generally are not. Technically speaking, as discussed under Feather Anatomy 101, a marabou feather, though strictly a plumulaceous feather, is also a vaned feather. Down feathers, though plumulaceous, have a random arrangement of barbs, and thus would not be considered vaned.
Other feather types similar in some respects to down and vaned feathers while unique in others include filoplumes, bris-tles, and semiplumes. A filoplume (thread feather) is a hair-like feather with barbs at the end of the shaft. They are distributed to all feather types, are always intimate to other feathers (from one to twelve adjacent a feather,) but grow out of their own follicles. Their purpose seems to have to do with subtle detection of movement of the adjacent feather such that they may, for example, aid in adjustment of feathers when in flight. (Filoplumes are sometimes incorrectly referred to as pinfeathers. A pinfeather is any feather that is immature.) Virtually all bristles are found on bird’s heads. They are stiff with a tapered shaft having barbs only on the proximal portion of the shaft (i.e., Crown Crane crest feathers.) Often they are mistaken for filoplumes which differ by having barbs at the distal end of the shaft. A semiplume is a down-like (plumulaceous) feather having a rachis, barbs, and barbules, but no barbicels (i.e., marabou.)
Numerous specialized names are applied to feathers appropriate to their location on the bird, from the face to the toes, but there are just a few basic types that would likely concern most fly tying needs.
Contour feathers cover the bird’s body. They are close fitting, yet separated from the skin to help isolate the body from out-side humidity and temperature. With the assistance of follicle muscles, the contour feathers can be erected, then lowered to adjust the depth of the protective layer. Contour feathers are typically broad, thin, curving inward toward the skin, directed toward the tail in overlapping rows, and have a combined pennaceous/plumulaceous vane. They help to smooth and streamline the body for flight. In some species they may be greatly modified for purposes of display or some other ornamental purpose. Many contour feathers have afterfeathers attached at the base. These are small plumulaceous feathers which may or may not have a shaft (hyporachis.) Usually a contour feather’s afterfeather is no more than half the length of the attached contour feather, yet exceptions always seem to occur in nature. Two birds, the Emu and the Cassowary, have afterfeathers as long as their contour feathers, while some birds such as the pigeon and ostrich have no afterfeathers.
Flight feathers include the tail feathers (rectrices) and wing feathers (remiges) as well as supplemental feathers that cover the adjacent upper and under surfaces.
Tail feathers (rectrices) act as a stabilizer tilting the front of the body up and down, as well as an air brake when the bird lands, but they are not used for steering except in steep turns. Tail feathers are usually large, stiff in texture, asymmetric, have vanes that are almost entirely pennaceous, and lack afterfeathers. In most cases tail assemblies are made up of 10-12 feathers (with some pheasants having up to 24) arranged in a single horizontal row. They each overlap their lateral (outside) edge over the medial (inside) edge of the adjacent feather. The outermost feather’s lateral vane is narrow, stiff, and convex com-pared to the softer, longer, concave barbs of the inner vane. This effect is digressive as the feathers work toward the center pair, such that the center pair’s vane is fairly symmetric right to left. The turkey tail assembly when fanned clearly demonstrates this. At the bases of the tail feathers are upper tail and under tail covert feathers that smooth and streamline the tail of the bird. Exceptions do occur such as with the peacock upper tail coverts, which lack streamlining, but are useful for display.
Wing feathers (remiges) are used for steering. Like tail feathers, they are usually large, stiff in texture, asymmetric, have vanes that are almost entirely pennaceous, and lack afterfeathers. Wing feathers include primary, secondary, and tertiary feathers. The primary wing feathers (typically 10-11 in number) attach to the middle digit and the hand. They are asymmetrical in vane structure with their leading and trailing margins notched. This sudden narrowing produces a series of slotted spaces between the primaries which in flight reduces air turbulence over the wing tips. Where turbulence is most extreme, the leading edge barbs are broadened and stiffened. These barbs are referred to in fly tying parlance as biots. The secondary wing feathers (anywhere from 9 to 40 in number and up to six inches wide by six feet in length) attach to the ulna of the fore-arm. The tertiary wing feathers attach to the humerus. There may also be a group of 3 or 4 feathers attached to the bones of the thumb forming a bastard wing (alula.) These feathers lie flat during normal flight, but extend out when flying slowly to prevent stalling.
Wing feathers may be uniquely developed for specific purposes. For example water-fowl wing feathers are designed to be water repellent. This is accomplished by modifications in the structure and position of the barbules such that a surface through which water cannot enter is created. They are so unique that a specific name is applied to this type of barbule/barbicel structure; flexules. The owl differs dramatically in having soft overlays of barbules on the surface of the feathers that allow this bird to be silent in flight.
The bases of the wing feathers as well as the upper and lower surface of the remain-der of the wing are covered by several rows of small, flattened wing coverts (tectrices.) The largest wing coverts are adjacent the wing feathers digressing in size toward the wings leading edge. The vane is principally pennaceous and designed to supply an air-tight surface to the wing. The upper wing coverts, like contour feathers, are convex. Under wing coverts are concave, which fits them up into the underside curve of the wing. (This is an important consideration for the fly tier. For example in Frederic Tolfrey’s Jones’s Guide to Norway a component of the wing on “The Major” salmon fly dressing calls for an overlay of two snipe feathers. These are under wing coverts on the snipe, and thus are concave. Their natural concavity forces the fly tier to carefully select a pair that will produce little or no outward curve when placed over the wing.) The under wing coverts on the leading edge of the wing initially ex-tend vertically and then bend backward over the wing at an acute right angle creating a camber or upward curve.
A bird passes through various distinct stages of plumage. The plumage of the nestling stage is mostly down and contour feathers which plays a role primarily of warmth and concealment. There may also be an inter-mediate nestling stage with yet a different plumage. The adult may have different stages of plumage such as immature, full adult, pre-nuptial, and courtship. Male to female can be quite different, especially in the adult. Some immature birds take on the appearance of a mature female (i.e., some cockatoos and parrots.) For the fly tier this can be of importance since some feathers in a fly may be obtained only from an adult male, an adult female, an immature male and/or female, either the adult female or an immature bird, or perhaps any of these. For example in The Salmon Fly, George Kelson’s dressings for The Silver Spectre and Prince’s Mixture call for the use of Black Cockatoo’s tail. Experience teaches that the feather of choice is only found on female or immature male Red-Tailed Black Cockatoo mottled orange, black and yellow center tails. A mature male has completely different black-red-black center tails. Then in Francis Francis’ A Book on Angling another dressing may simply read Black Cockatoo or any other black feather. Here the feather becomes more obvious and might be either a strip from the black portion of an adult male Red-Tailed Black Cockatoo’s tail, or better yet the all black tail of an adult male Palm Cockatoo.
The more the fly tier knows about the materials he has access to, the better his ability to select and apply the proper material to achieve the desired end result. Do not al-ways accept what is read or told without a bit of personal investigation. Take time to look at materials. Feel them. Observe them under magnification. If possible gain access to a good hand lens of at least 15x, or better yet a dissecting microscope. Close observation of the structure of the materials we tie with can prove amazingly enlightening. Do some homework in books such as Darrel Martin’s Fly Tying Methods, which includes excellent microphotographs of all manner of tying materials. Thorough knowledge of materials, dexterity, and experience are always found in abundance with the best fly tiers.
A quote from Mr. Martin’s book sums up so well a great deal of the motivation for this article: The birth of a fly begins with a feather. The tier will require time and expe-rience to know the various feather types, their numerous names, and their craft pos-sibilities. The fly at the end of your tippet should be the result of all your knowledge and skill; it is the touchstone that drifts over the mystery of water and trout. After all, a fly is more feather than steel. It is the different feathers and the different methods that make a different fly. (Fly Tying Meth-ods, pg. 59.)
Afterfeather – attached at the base of con-tour feathers; small plumulaceous feathers which may or may not have a shaft.
Barbicel – a collective term referring to all the processes found on the barbule that interlock to create the vane.
